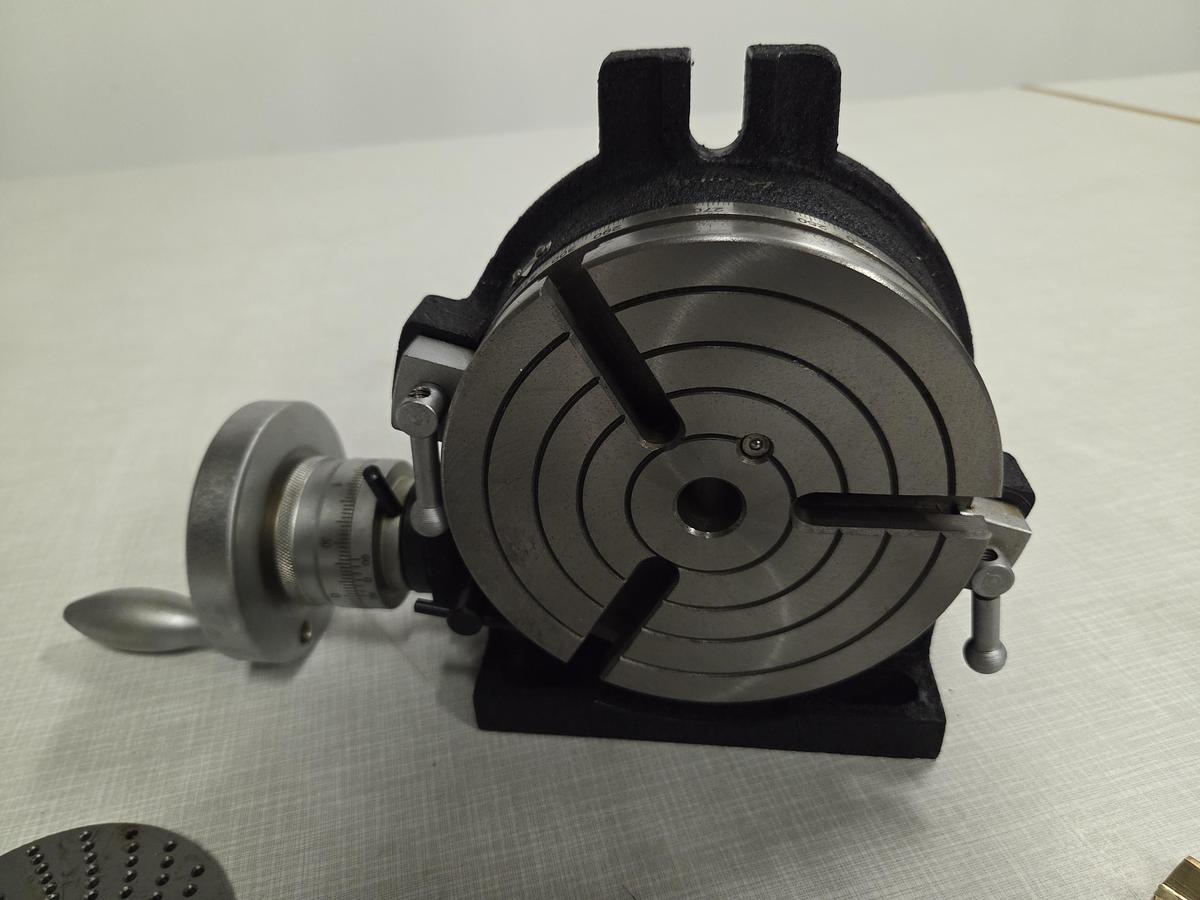

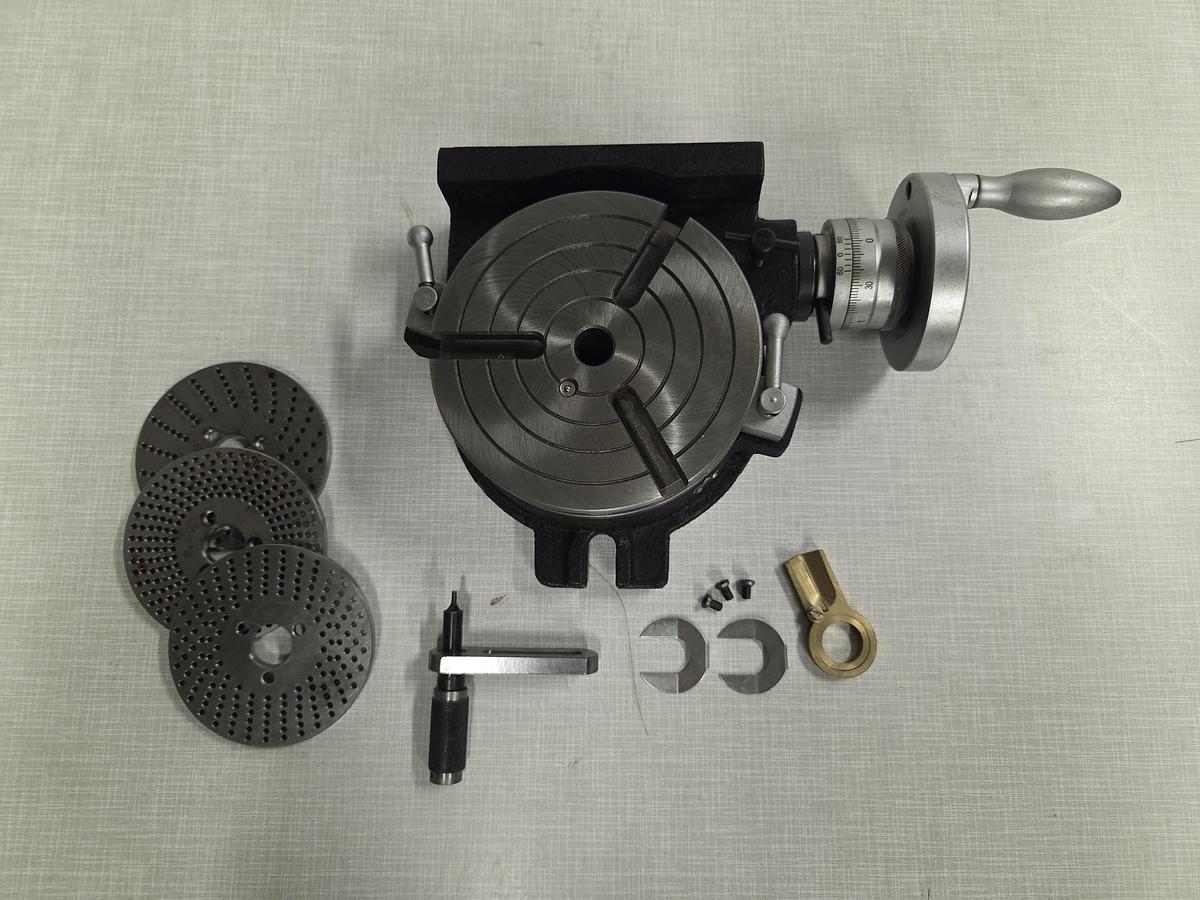

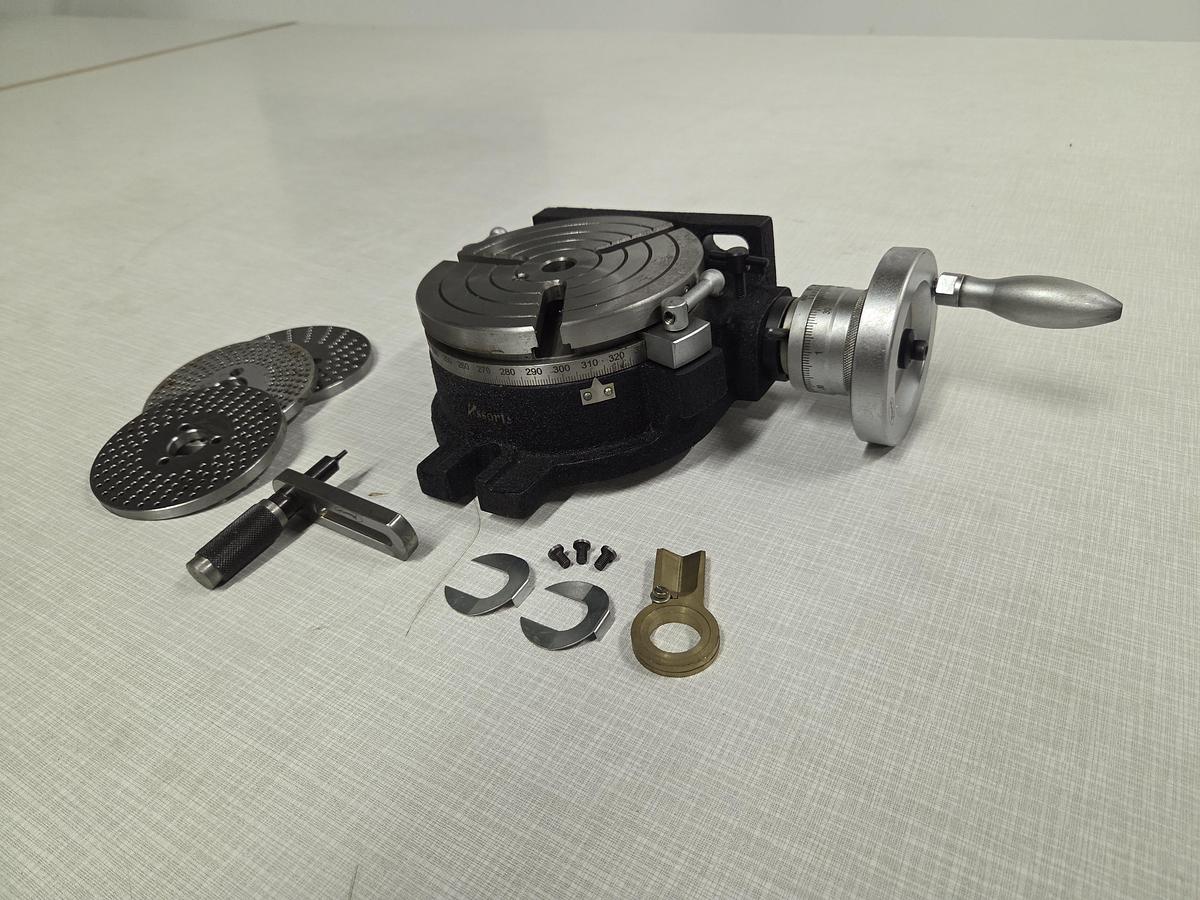

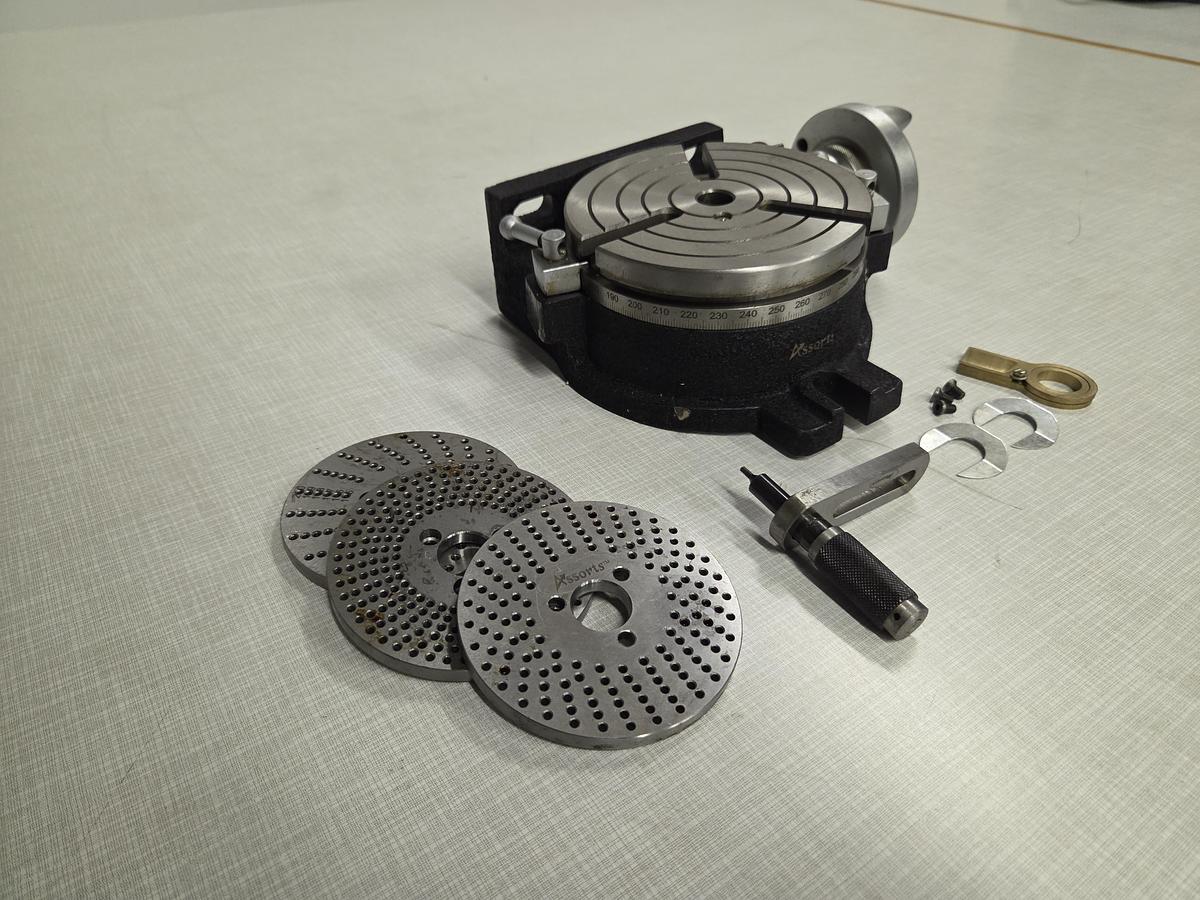

HV6 Verdeeltafel

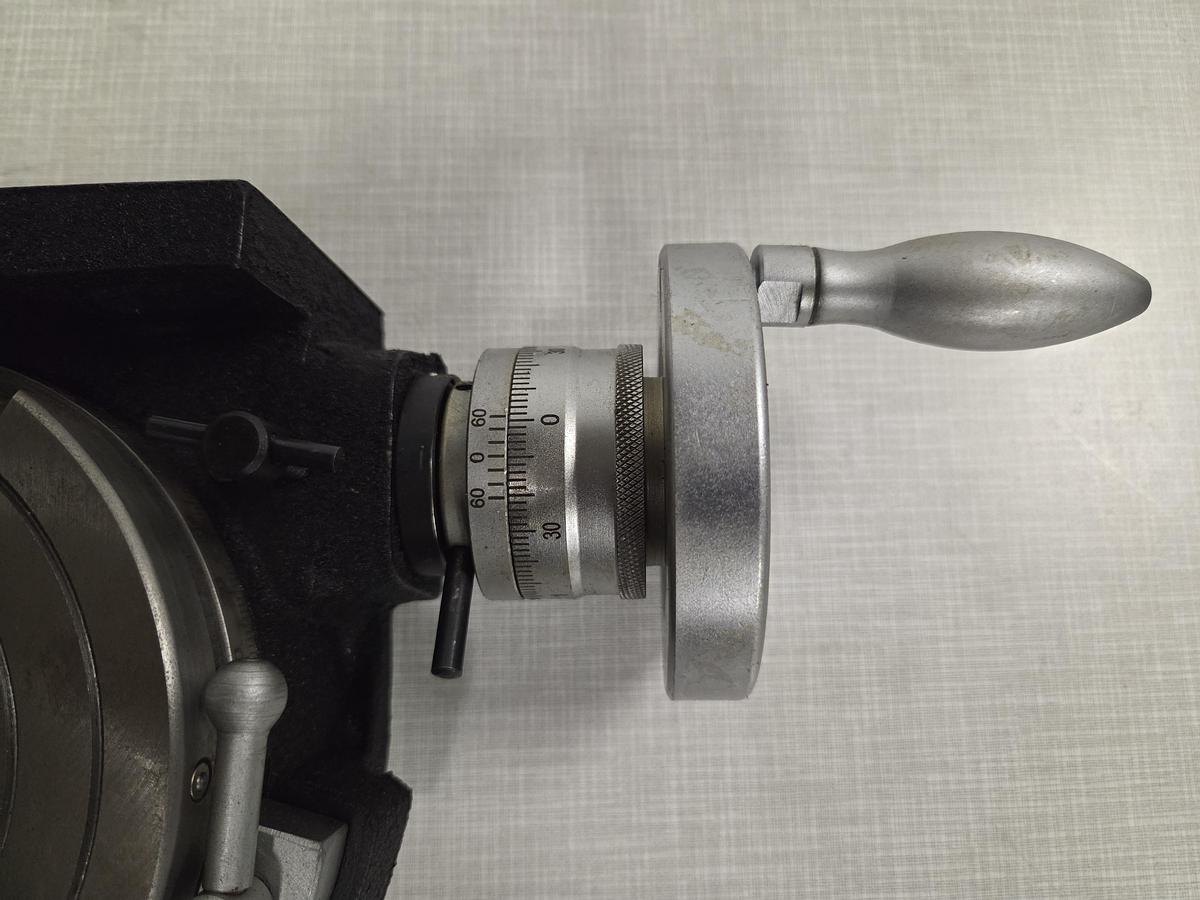

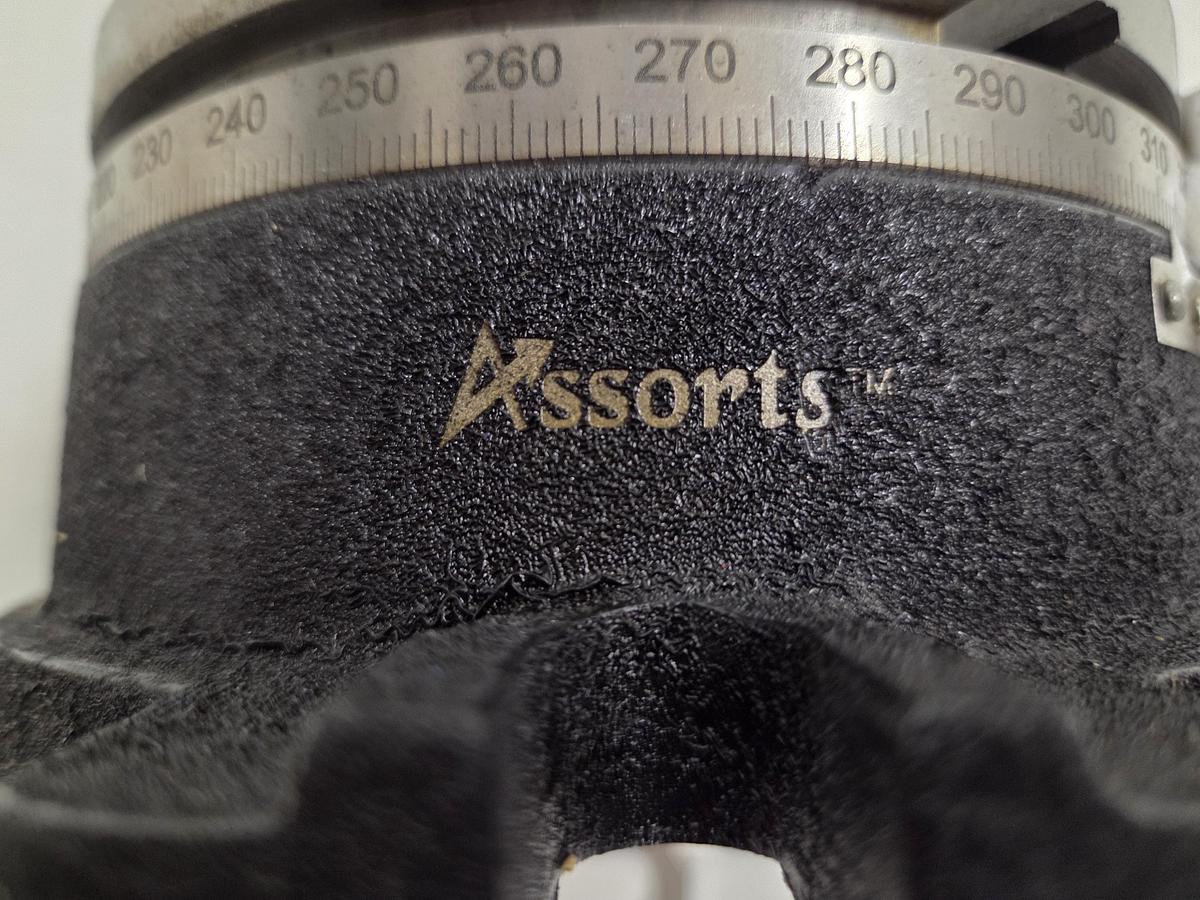

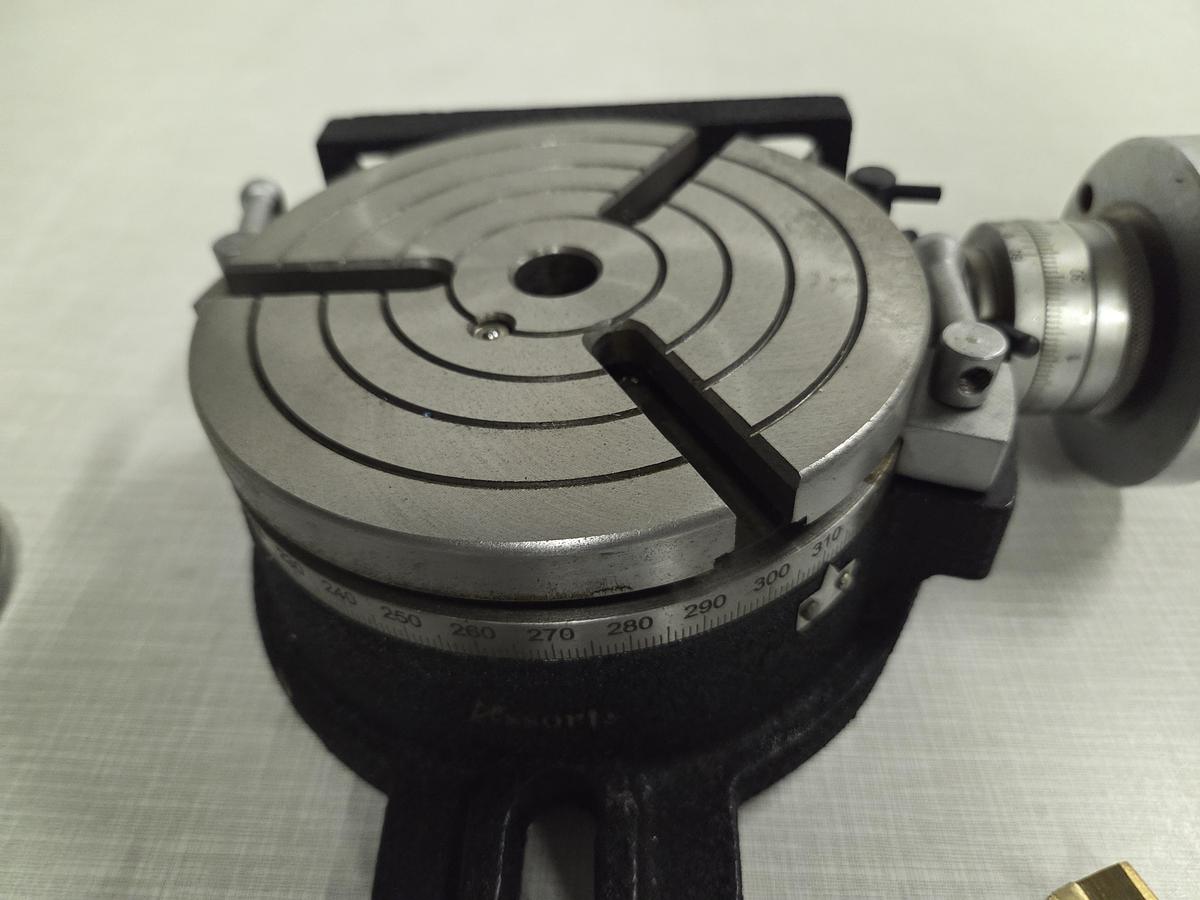

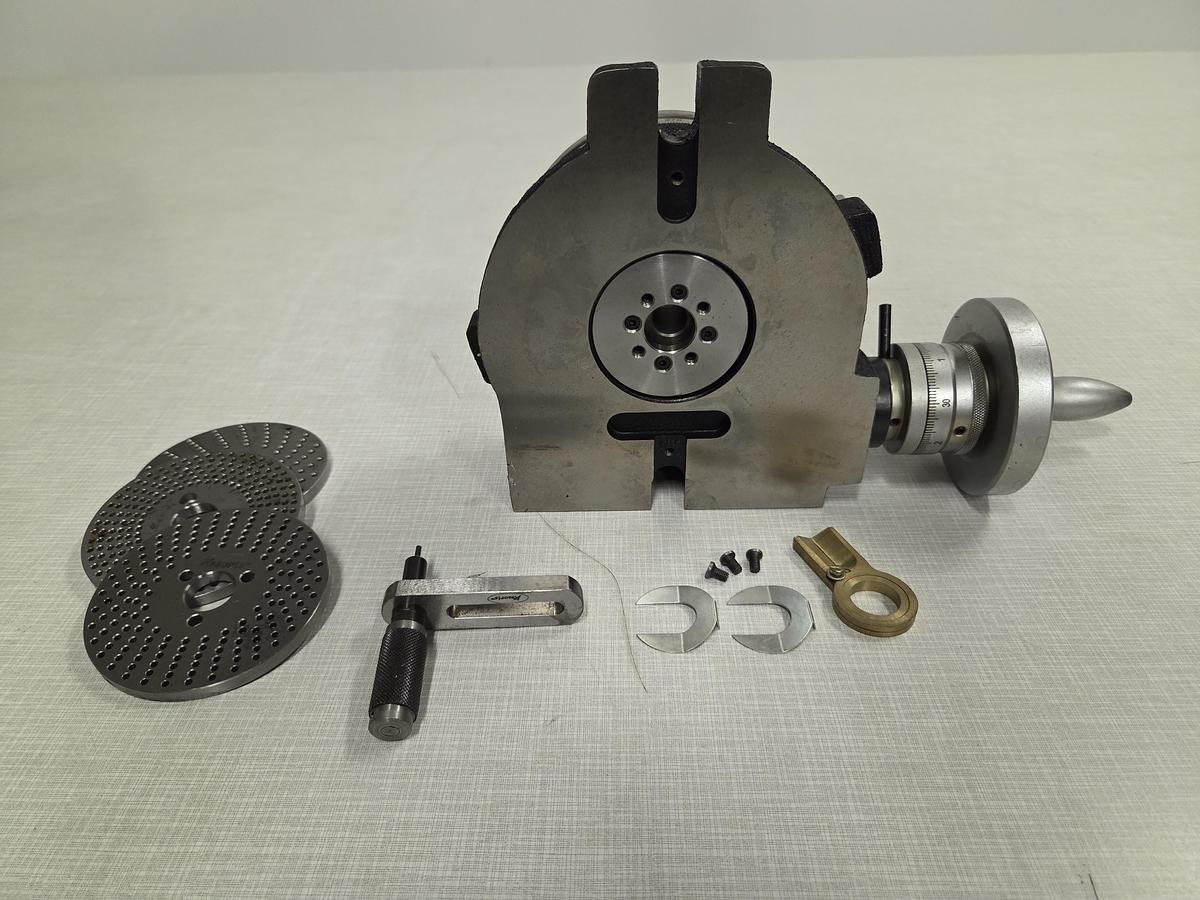

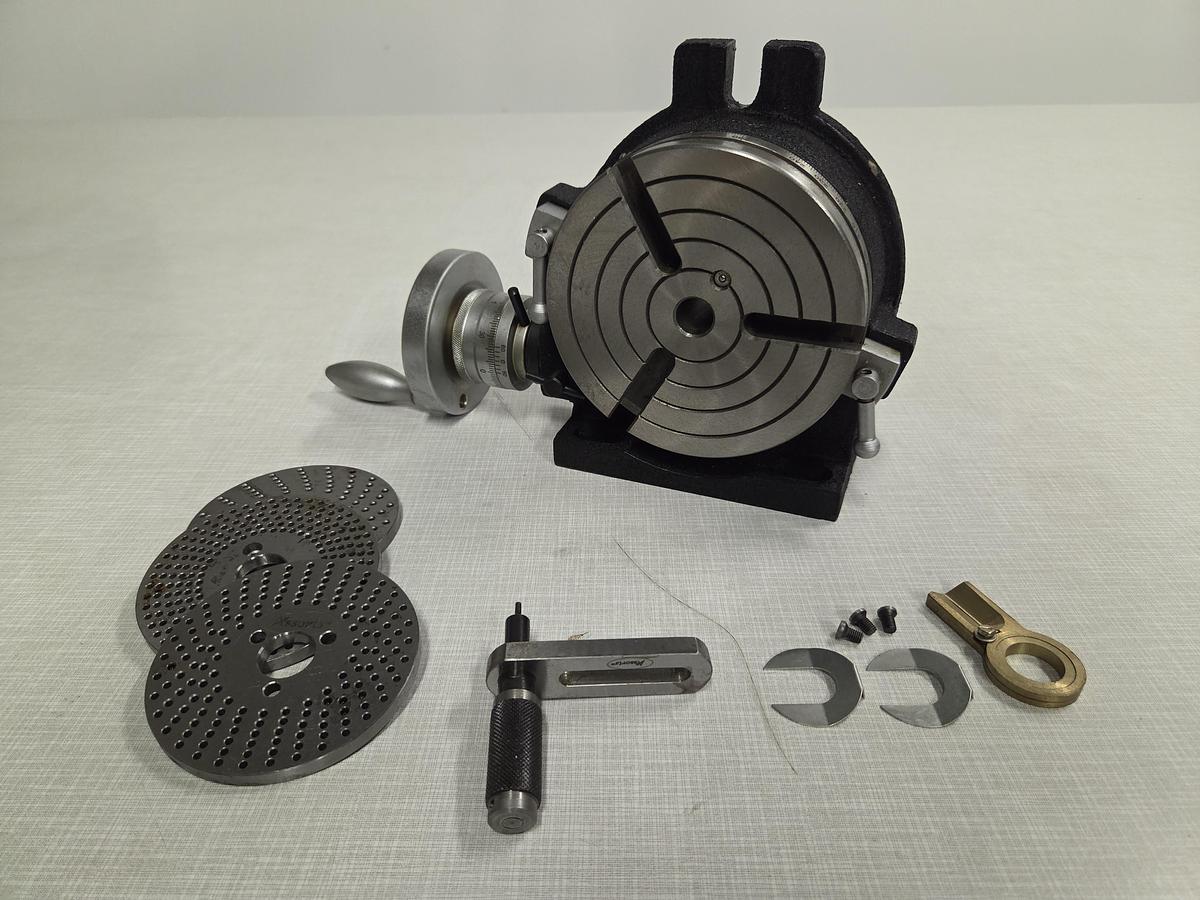

Rotary Table Diameter :150 mm (6"). Overall Height : 80 mm ( 3-1/4"). Centre Height in Vertical Position: 105 mm. Worm- Gear Ratio- 1:90, which means that the 1 handle rotation shall turn the table by 4º. Table Graduated 360º. Resettable Dial & Handwheel graduated in seconds. Vernier scale is caliberated to 10 seconds. Centre Bore of the Table: 2 MT. 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position. Item No
