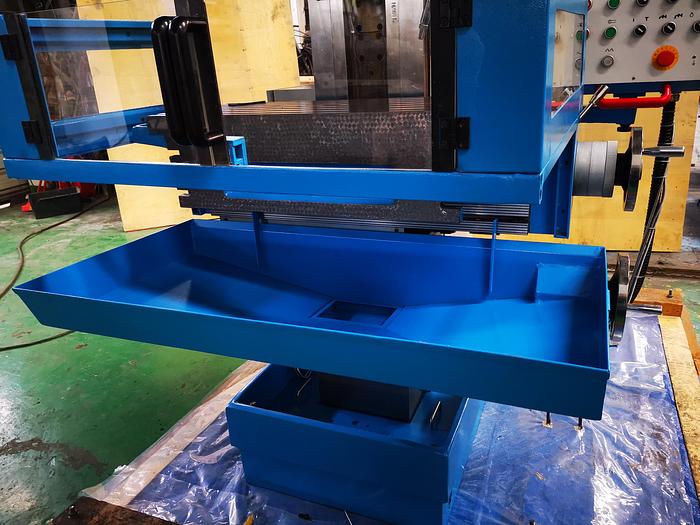

WM8140 - ROGI Industrie Freesmachine
WM8140 - ROGI Industrie Freesmachine
Vraag ons om de prijs
Plaats:Mierlo, Nederland
Beschrijving
A solid and precise milling machine With 3-axis digital readout
Specificaties
| Fabrikant | Rogi |
| Model | WM8140 |
| Conditie | Nieuw |
| Item No | WM8140 |
| Table size horizontal working table | 800 x 400 mm |
| Table size vertical working table | 950 x 250 mm |
| Longitudinal / transverse / vertical travel | 500/350/400 mm |
| Universal table Horizontal swivel | ±360º |
| Universal table Inclination to front and rear | ±30º |
| Universal table Inclination on left and right | ±30º |
| Vertical milling head Vertical travel of quill | 60 mm |
| Vertical milling head Axis inclination on left and right | ±90º |
| Horizontal spindle Spindle taper | ISO40 |
| Horizontal spindle Height from axis to ground | 1330 mm |
| Horizontal spindle Min. distance between axis and surface of horizontal table | 35 mm |
| Vertical spindle Spindle taper | ISO40 |
| Vertical spindle Min. distance between nose and surface of horizontal table | 5 mm |
| Horizontal and vertical spindle speed: steps/range | 18 steps / 40 ~ 2000 rpm |
| Longitudinal, transverse and vertical feeds: steps/ range | 18 steps / 10 ~ 500 mm/min |
| Vertical milling spindle feed | 3 steps / 0.03 ~ 0.12 mm/rev |
| Power of main motor / feed motor | 3 Kw / 1.5 Kw |
| Max. table load | 300 kg |
| Overall dimension | 1820 x 1640 x 1710 mm |
| Net weight | 2300 kg |
