WM5150 - ROGI Bed Milling Machine
WM5150 - ROGI Bed Milling Machine
Contact us for price
Location:Mierlo, Netherlands
or
Call +31492599593
Description

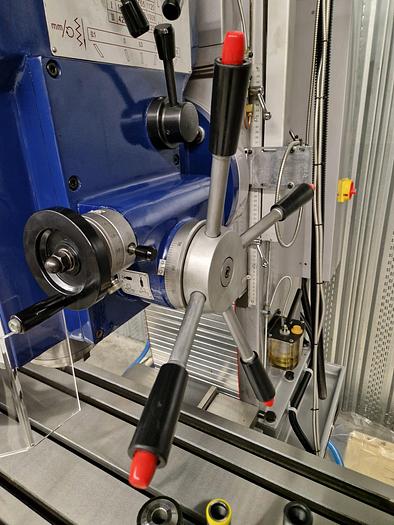

Massive bed milling machine ideal for drilling, milling and countersink works Milling and drilling performance with automatic spindle feed Large compound sliding table on rigid guideways Manual quill feed for boring and micro-feed Motorised machine head positioning Automatic rapid table feed X/Y axis 3-axis digital readout system Coolant system Central lubrication LED work lamp
Specifications
| Manufacturer | Rogi |
| Model | WM5150 |
| Condition | New |
| Stock Number | M2201 |
| Max. milling | 32 mm |
| Max. drilling | 50 mm |
| Max. tapping | M16 |
| Table size | 1220 x 360 mm |
| Table travel | X - 600, Y - 360 mm |
| Headstock vertical travel (Z) | 500 mm |
| Automatic table feed speed | (8) 24 ~ 720 mm/min |
| T-slot Number - Width - Distance | 3 - 14 mm - 95 mm |
| Range of spindle speeds | (16) 94 ~ 2256 rpm |
| Spindle taper | ISO40 |
| Spindle stroke | 180 mm |
| Automatic spindle feed | 0,1 / 0,15 / 0,3 mm/rev |
| Automatic vertical speed of headstock | 1350 mm/min |
| Distance from spindle nose to table | 120 ~ 620 mm |
| Distance from spindle to column | 400 mm |

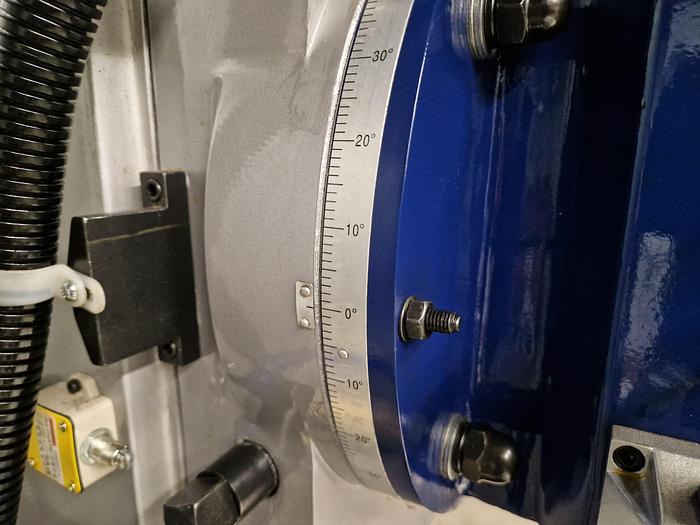

| Head swivel | -45° to +45° |
| Spindle motor | 1,5 / 2,4 kW |
| Overall dimension (LxWxH) | 1730 x 1730 x 2300 mm |
| Net weight | 1750 kg |
