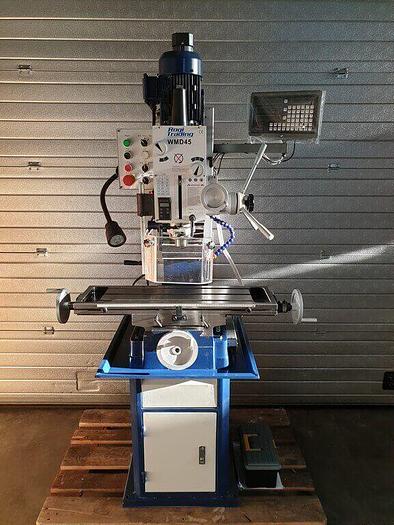

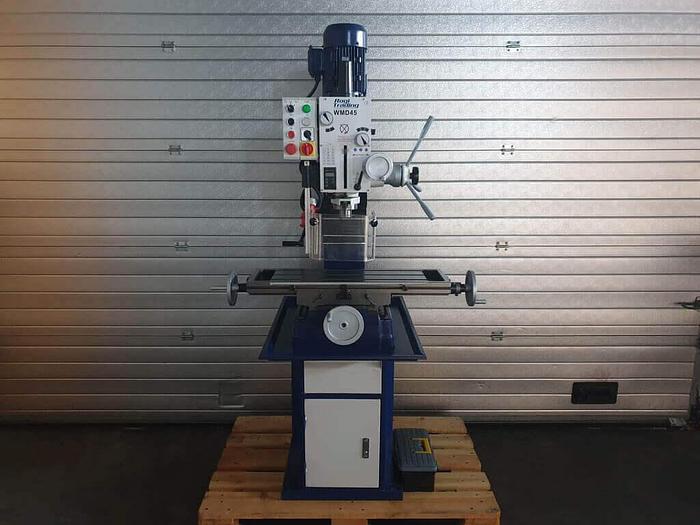

WMD45 Rogi Drilling-Milling Machine
WMD45 Rogi Drilling-Milling Machine
Contact us for price
Location:Mierlo, Netherlands
Description
Accurate, widely useful milling drilling machine Extremely quiet operation High precision grinding spindle Large square column casting and table Gear head enables to change speeds quickly Head may be tilted right & left High precision manual fine feed Positive locks for table, head, spindle quill Adjustable taper gibs for slideways Power elevation mill head (option) Easy to read digital depth display Electrical box and control station Equipped with double speed motor, tapping assembly Equipped with 3 phase 5 poles EU plug Taper shank for drilling chuck ISO30-B16 Drilling chuck 1-13 mm 2 pcs T-slot bolt M12x55 Tolerance test certificate
Options
3-axis digital readout system
Stand
Coolant
LED worklamp
Motorised mill head up/down
Milling vise
Clamping kit
Milling chuck holder ISO30 and collets
Mill cutters
Specifications
| Manufacturer | Rogi |
| Model | WMD45 |
| Condition | New |
| Item No | WMD45 |
| Max. drilling capacity | 45 mm cast iron - 32 mm steel |
| Max. end milling capacity | 32 mm |
| Max. face milling capacity | 80 mm |
| Table size | 800 x 240 mm |
| Table travel X,Y | 560 x 230 mm |
| T-slot size | 14 mm |
| Spindle taper | ISO30 |
| Spindle stroke | 120 mm |
| Range of spindle speeds | (12) 75~3200 rpm |
| Swivel head left/right | 90º |
| Distance from spindle to column | 258 mm |
| Max. distance from spindle nose to table | 440 mm |
| Motor | 1.1 kW |
| Machine dimension | 1090 x 1120 x 785 mm |
| Weight | 350 kg |
