Rogi WF250V-Fx750 DIG INVERTER lathe
![Rogi WF250V-Fx750 DIG INVERTER](https://i.machineryhost.com/5d79099fcdf499f12b79770834c0164a/f29f31ca9a82b658fb88fc4a5ced01cb/large-rogi-wf-250-v-fx750-dig-inverter.jpg)
Rogi WF250V-Fx750 DIG INVERTER lathe
Contact us for price
Location:Mierlo, Netherlands
Description
Delta inverter drive with AC motor Infinitely variable speed from 30 - 2200 rpm Double vee bedway - hardened and ground Adjustable gibs to slideways Offset facility to tailstock Tailstock quill engraved metric and imperial Metric and imperial thread cutting
Automatic longitudinal and cross feed Reversible leadscrew for left hand threading Thread dial indicator Zero / friction dials Powerful AC motor 1,5 kW Huge torque in the low speed range
Standard Accessories

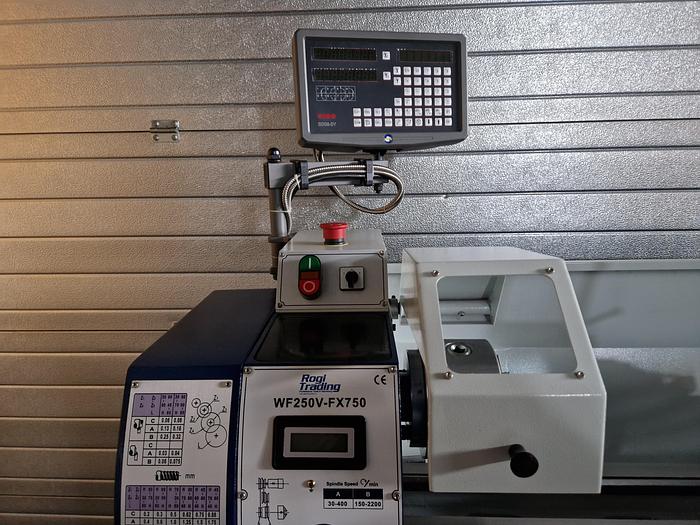

2-axis digital readout system SINO
3-jaw chuck 125 mm self-centering
4-jaw chuck 125 mm independant
Backplate 125 mm
Faceplate 240 mm
Steady rest
Follow rest Splash guard Chip tray Change gears Threading dial Toolbox & tools
Options Multifix toolpost A1 Stand
Live center MT2
Turning tools
Collet chuck attachment
Specifications
Manufacturer | Rogi |
Model | WF250V-Fx750 DIG INVERTER |
Condition | New |
Centre height | 125 mm |
Swing over bed | 250 mm |
Swing over cross slide | 150 mm |
Distance between centres | 750 mm |
Bed width | 135 mm |
Spindle taper | MT4 |
Spindle bore | 26 mm |
Range of spindle speeds | 30 - 2200 rpm |
Range of metric threads | 0,2 - 3,5 mm |
Range of imperial threads | 8 - 56 tpi |
Tailstock taper | MT2 |
Tailstock quill travel | 80 mm |
Longitudinal travel | 650 mm |
Top slide travel | 70 mm |
Cross slide travel | 115 mm |
Headstock bearings | Taper roller |
Compound slide swivel | 360º |
Chuck mounting | Flange fitting |
Motor | 1,5 kW (AC) |
Power supply | 230V |
Maximum tool size | 12 x 12 mm |
Packing size L x W x H | 1500 x 640 x 620 mm |
Weight | 165 kg |
